AC10-8.50
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 300 V | - |
| Rated Current | 20 A | - |
| Wire Range | 22 ~ 12 AWG | - |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 500MΩ / DC500V | |
| Withstanding voltage | AC2000V / 1Min | |
Other Data
| Insulation Material | PBT, UL94V-0 | |
| Conductor Material | Copper alloy, Sn plated | |
| Pitch / Poles | 8.50 mm / 2 ~ 15 poles | |
| Screw / Torque | M3.0 Steel Ni plated / 1 N.m | |
| Operating Temperature | -40 ~ +130 ℃ | |

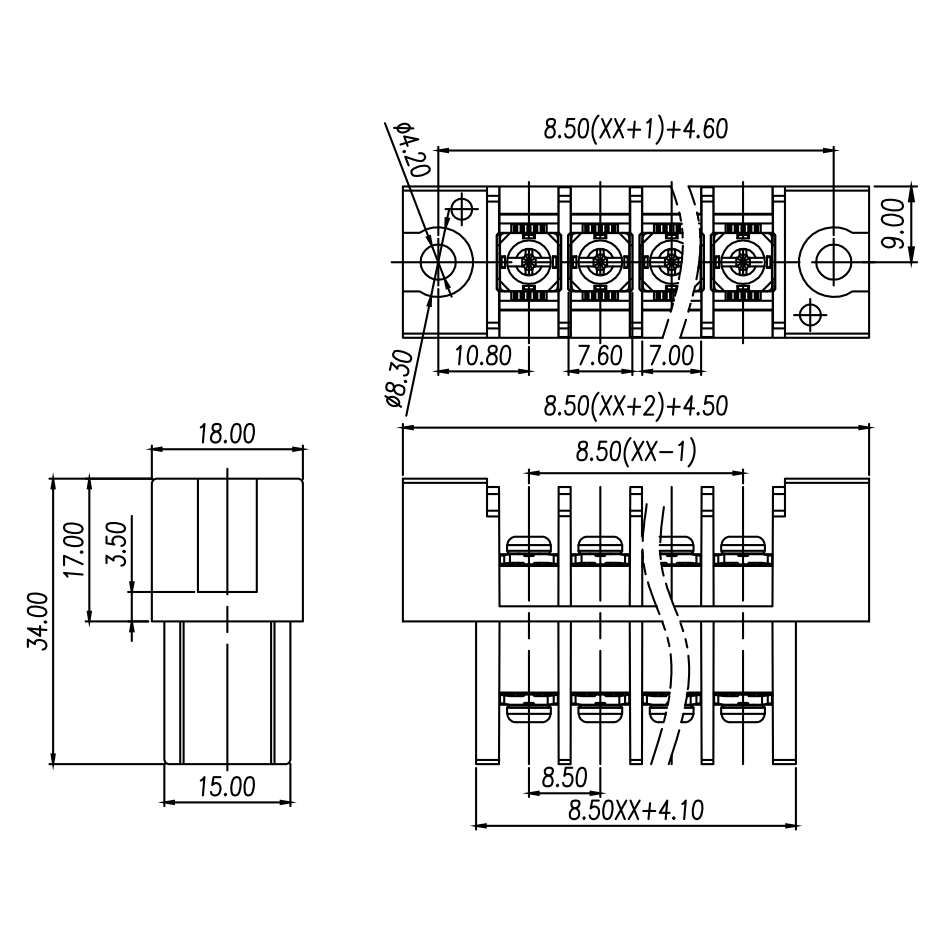

Dimensions

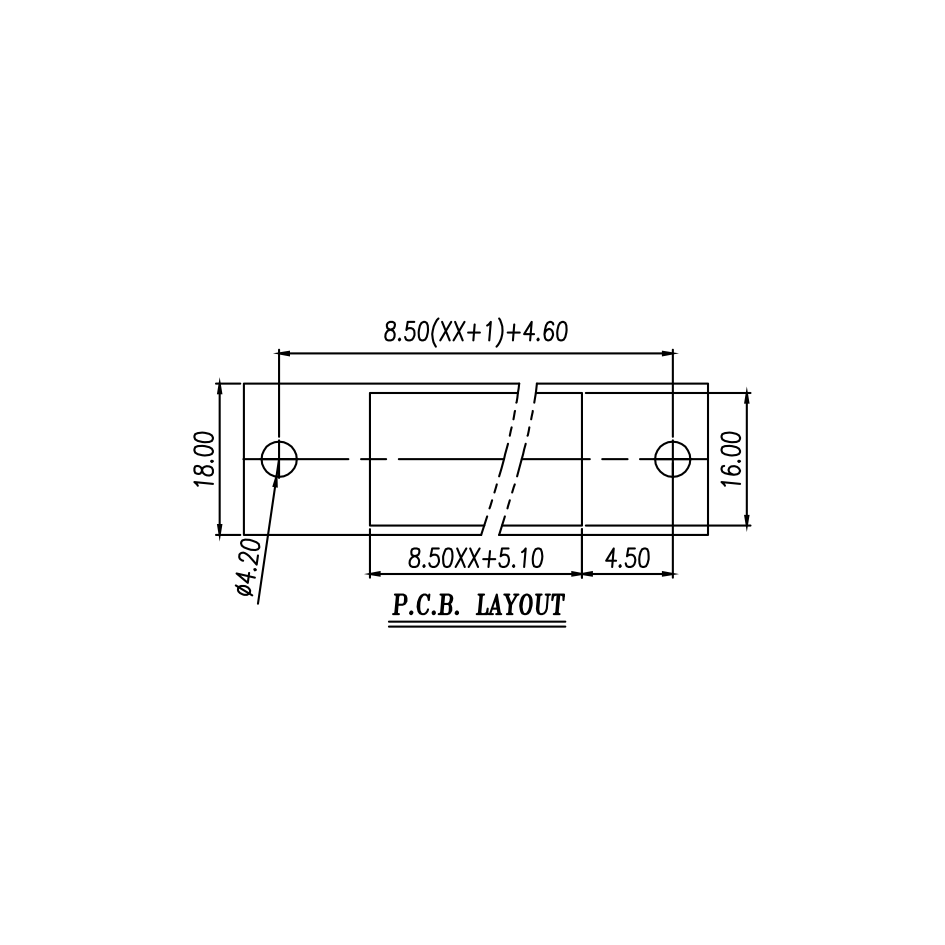

PCB Opening diagram
