AC13-51H-12.50
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 150 V | 250 V |
| Rated Current | 30 A | 32 A |
| Wire Range | 22 ~ 10 AWG | 6 mm² |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 500MΩ / DC500V | |
| Withstanding voltage | AC2000V / 1Min | |
Other Data
| Insulation Material | PA66, UL94V-0 | |
| Conductor Material | Copper alloy, Sn plated | |
| Pitch / Poles | 12.50 mm / 3 poles | |
| Screw / Torque | M4.0 Steel Au plated / 1.2 N.m | |
| Operating Temperature | -40 ~ +105 ℃ | |

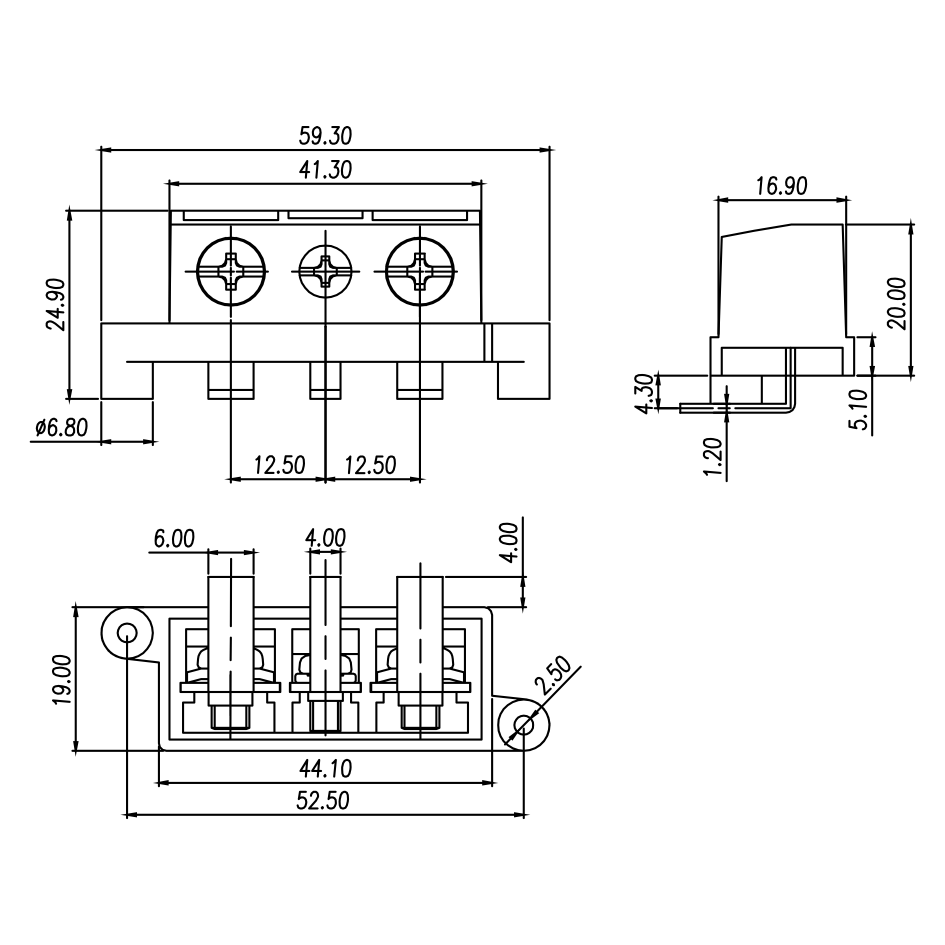

Dimensions
